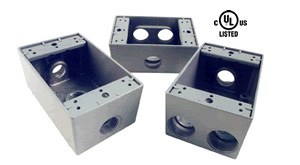

Weatherproof Diecast Aluminum
1 Gang Boxes

Click here for accessories such as
Screws, Lugs, Closure Plugs and Part Bags.

Item No.
Trade
Size (In.)
No. of
Holes
Volume
(Cu. In.)
Hole Configuration
0
B23
1/2
3
19
1 hole in each end, 1 in back
0
B24
1/2
4
19
2 holes in one end, 1 in other end, 1 in back
0
B24S
1/2
4
18.25
1 hole in each end, 1 in side, 1 in back
0
B25
1/2
5
19
2 holes in one end, 2 in other end, 1 in back
0
B25S
1/2
5
18.25
1 hole in each end, 1 in each side, 1 in back
0
B26S
1/2
6
19
1 hole in each end, 1 in side, 2 in other side, 1 in back
0
B33
3/4
3
19
1 hole in each end, 1 in back
0
B34
3/4
4
19
2 holes in one end, 1 in other end, 1 in back
0
B35
3/4
5
19
2 holes in one end, 2 in other end, 1 in back
0
B35S
3/4
5
18.25
1 hole in each end, 1 in each side, 1 in back
0
B36S
3/4
6
19
1 hole in each end, 1 in side, 2 in other side, 1 in back
0
B43
1
3
19
1 hole in each end, 1 in back
Above Item Numbers denote raw castings. For Oven-Baked Powder Coated finishes,
add one of the following suffixes: P=Gray, BR=Bronze, W=White, BL=Black, G=Green

1 Gang Box Accessories

Item
No.
Description
0
B-101
10-32 x 3/8" Hex Head Green Ground Screw
0
B-102
8-32 x 5/16" Slotted Flat Head Lug Screw
0
B-103
B-Box Mounting Lug

0
CP2
1/2" Closure Plug
0
CP3
3/4" Closure Plug
0
CP4
1" Closure Plug

0
2CP2G
2 CP2, 1 B-101 Ground Screw*
0
2CP2GLS
2 CP2, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
2CP3G
2 CP3, 1 B-101 Ground Screw*
0
2CP3GLS
2 CP3, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
2CP4G
2 CP4, 1 B-101 Ground Screw*
0
2CP4GLS
2 CP4, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
3CP2GLS
3 CP2, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
3CP3GLS
3 CP3, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
4CP2G
4 CP2, 1 B-101 Ground Screw*
0
4CP3G
4 CP3, 1 B-101 Ground Screw*
0
B-105
1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0* Packaged in Plastic Bag

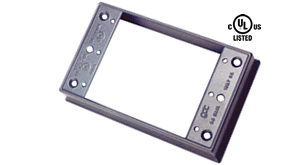

Weatherproof Diecast Aluminum
1 Gang
Box Extensions







Click here for accessories such as
Gaskets, Screws and Closure Plugs.
0


Item
No.
Trade
Size (In.)
No. of
Holes
Volume
(Cu. In.)
Hole Configuration
0
B001A
-
-
9.5
-
0
B24A
1/2
4
9.5
2 holes in each end
0
B24AF
1/2
4
9.5
2 holes in each end
0
B34A
3/4
4
9.5
2 holes in each end
0
B34AF
3/4
4
9.5
2 holes in each end
Above Item Numbers denote raw castings. For Oven-Baked Powder Coated finishes,
add one of the following suffixes: P=Gray, BR=Bronze, W=White, BL=Black, G=Green

1 Gang Box Extensions Accessories

Item
No.
Description
0
BAF-G
1 Gang Flange Extension Gasket

0
632-1.5
6-32 x 1 1/2" Mounting Screw
0
632-2.0
6-32 x 2" Mounting Screw

0
CP2
1/2" Closure Plug
0
CP3
3/4" Closure Plug

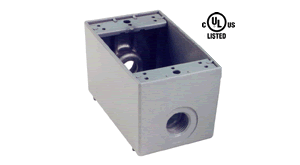

Weatherproof Diecast Aluminum
1 Gang Deep Boxes







Click here for accessories such as
Screws, Lugs, Closure Plugs and Part Bags.
0


Item No.
Trade
Size (In.)
No. of
Holes
Volume
(Cu. In.)
Hole Configuration
0
DB23
1/2
3
24
1 hole in each end, 1 in back
0
DB24
1/2
4
24
2 holes in one end, 1 in other end, 1 in back
0
DB33
3/4
3
24
1 hole in each end, 1 in back
0
DB34
3/4
4
24
2 holes in one end, 1 in other end, 1 in back
0
DB43
1
3
24
1 hole in each end, 1 in back
Above Item Numbers denote raw castings. For Oven-Baked Powder Coated finishes,
add one of the following suffixes: P=Gray, BR=Bronze, W=White, BL=Black, G=Green

1 Gang Deep Box Accessories

Item No.
Description
0
B-101
10-32 x 3/8" Hex Head Green Ground Screw
0
B-102
8-32 x 5/16" Slotted Flat Head Lug Screw
0
B-103
B-Box Mounting Lug

0
CP2
1/2" Closure Plug
0
CP3
3/4" Closure Plug
0
CP4
1" Closure Plug

0
2CP2G
2 CP2, 1 B-101 Ground Screw*
0
2CP2GLS
2 CP2, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
2CP3G
2 CP3, 1 B-101 Ground Screw*
0
2CP3GLS
2 CP3, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
2CP4G
2 CP4, 1 B-101 Ground Screw*
0
2CP4GLS
2 CP4, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
3CP2GLS
3 CP2, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
3CP3GLS
3 CP3, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
4CP2G
4 CP2, 1 B-101 Ground Screw*
0
4CP3G
4 CP3, 1 B-101 Ground Screw*
0
B-105
1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0* Packaged in Plastic Bag


Weatherproof Diecast Zinc
1 Gang Covers
(Vertical)







Click here for accessories such as
Screws and Gaskets.
0


Item No.
Hole Configuration
0
C1.4V
1.4" Single hole Receptacle
0
C1.6V
1.625" Single hole Power Outlet
0
C1.7V
1.750" Single hole Power Outlet
0
C2.1V
2.125" Single hole Power Outlet
0
CLSV
Lever Switch
0
CDLSV
Deep Lever Switch
0
CDRV
Duplex Receptacle
0
CGFIV
GFI/Decorator
0
CTSV
Toggle Switch
Above Item Numbers denote raw castings. For Oven-Baked Powder Coated finishes,
add one of the following suffixes: P=Gray, BR=Bronze, W=White, BL=Black, G=Green

1 Gang Covers (Vertical) Accessories

Item No.
Description
0
DC-101-IN
Duplex Lid Gasket
0
DC-101-OUT
Duplex Cover Gasket
0
DC-112
Duplex Lid Gasket (on roll)
0
V-102
Vertical Lid Gasket
0
V-103
50 Amp Vertical Lid Gasket
0
UPG
Universal Plate Gasket

0
S-102
6-32 x 1/2" Slotted Oval Head Screw




Weatherproof Diecast Zinc
1 Gang Covers
(Horizontal)

Click here for accessories such as
Screws and Gaskets.
0


Item No.
Hole Configuration
0
C1.4H
1.4" Single hole Receptacle
0
CGFIH
GFI/Decorator
0
CDRH
Duplex Receptacle
Above Item Numbers denote raw castings. For Oven-Baked Powder Coated finishes,
add one of the following suffixes: P=Gray, BR=Bronze, W=White, BL=Black, G=Green

1 Gang Covers (Horizontal) Accessories

Item No.
Description
0
DC-101-IN
Duplex Lid Gasket
0
DC-101-OUT
Duplex Cover Gasket
0
DC-112
Duplex Lid Gasket (on roll)
0
H-102
Horizontal Lid Gasket
0
UPG
Universal Plate Gasket

0
S-102
6-32 x 1/2" Slotted Oval Head Screw




Weatherproof Diecast Zinc
Rectangular
Cluster Covers

Click here for accessories such as
Screws, Closure Plugs and Gaskets.
0


Item No.
Trade
Size (In.)
No. of
  Holes
Hole Configuration
0
C1S
1/2
1
1 hole
0
C1SS
1/2
1
Tall - 1 hole
0
C2S
1/2
2
2 holes
0
C3S
1/2
3
3 holes
Above Item Numbers denote raw castings. For Oven-Baked Powder Coated finishes,
add one of the following suffixes: P=Gray, BR=Bronze, W=White, BL=Black, G=Green

Rectangular Cluster Covers Accessories

Item No.
Description
0
UPG
Universal Plate Gasket

0
S-102
6-32 x 1/2" Slotted Oval Head Screw

0
CP2
1/2" Closure Plug
