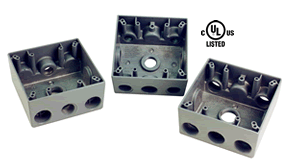

Weatherproof Diecast Aluminum
2 Gang Boxes

Click here for accessories such as
Screws, Lugs, Closure Plugs and Part Bags.

Item No.
Trade
Size (In.)
No. of
Holes
Volume
(Cu. In.)
Hole Configuration
0
B232
1/2
3
30.5
1 hole in each end, 1 in back
0
B242
1/2
4
30.5
2 holes in one end, 1 in other end, 1 in back
0
B242S
1/2
4
30.5
1 hole in each end, 1 in side, 1 in back
0
B252
1/2
5
30.5
2 holes in one end, 2 in other end, 1 in back
0
B252S
1/2
5
30.5
1 hole in each end, 1 in each side, 1 in back
0
B272
1/2
7
30.5
3 holes in each end, 1 in back
0
B272S
1/2
7
30.5
2 holes in each end, 1 in each side, 1 in back
0
B332
3/4
3
30.5
1 hole in each end, 1 in back
0
B342
3/4
4
30.5
2 holes in one end, 1 in other end, 1 in back
0
B342S
3/4
4
30.5
1 hole in each end, 1 in side, 1 in back0
0
B352
3/4
5
30.5
2 holes in one end, 2 in other end, 1 in back
0
B352S
3/4
5
30.5
1 hole in each end, 1 in each side, 1 in back
0
B372
3/4
7
30.5
3 holes in each end, 1 in back
0
B372S
3/4
7
30.5
2 holes in each end, 1 in other side, 1 in back
0
B392S
3/4
9
30.5
3 holes in each end, 1 in each side, 1 in back
0
B432
1
3
30.5
1 hole in each end, 1 in back
0
B452S
1
5
30.5
1 hole in each end, 1 in each side, 1 in back
Above Item Numbers denote raw castings. For Oven-Baked Powder Coated finishes,
add one of the following suffixes: P=Gray, BR=Bronze, W=White, BL=Black, G=Green

2 Gang Box Accessories

Item No.
Description
0
B-101
10-32 x 3/8" Hex Head Green Ground Screw
0
B-102
8-32 x 5/16" Slotted Flat Head Lug Screw

B-103
B-Box Mounting Lug


CP2
1/2" Closure Plug
0
CP3
3/4" Closure Plug
0
CP4
1" Closure Plug

0
2CP2G
2 CP2, 1 B-101 Ground Screw*
0
2CP2GLS
2 CP2, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
2CP3G
2 CP3, 1 B-101 Ground Screw*
0
2CP3GLS
2 CP3, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
2CP4G
2 CP4, 1 B-101 Ground Screw*
0
2CP4GLS
2 CP4, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
3CP2GLS
3 CP2, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
3CP3GLS
3 CP3, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
4CP2G
4 CP2, 1 B-101 Ground Screw*
0
4CP3G
4 CP3, 1 B-101 Ground Screw*
0
B-105
1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0* Packaged in Plastic Bag

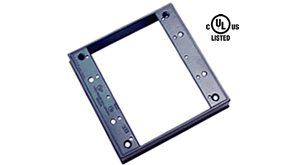

Weatherproof Diecast Aluminum
2 Gang
Box Extensions

Click here for accessories such as Screws.
0



Item No.
Trade
Size (In.)
No. of
Holes
Volume
(Cu. In.)
Hole Configuration
0
B002A
-
-
15.86
-
Above Item Numbers denote raw castings. For Oven-Baked Powder Coated finishes,
add one of the following suffixes: P=Gray, BR=Bronze, W=White, BL=Black, G=Green

2 Gang Box Extensions Accessories

Item No.
Description
0
632-1.5
6-32 x 1 1/2" Mounting Screw

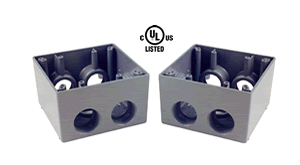

Weatherproof Diecast Aluminum
2 Gang Deep Boxes

Click here for accessories such as
Screws, Lugs, Closure Plugs and Part Bags.
0


Item No.
Trade
Size (In.)
No. of
Holes
Volume
(Cu. In.)
Hole Configuration
0
DB252
1/2
5
37
2 holes in each end, 1 in back
0
DB272S
1/2
7
37
2 holes in each end, 1 in each side, 1 in back
0
DB352
3/4
5
37
2 holes in each end, 1 in back
0
DB372S
3/4
7
37
2 holes in each end, 1 in each side, 1 in back
0
DB452
1
5
37
2 holes in each end, 1 in back
0
DB472S
1
7
37
2 holes in each end, 1 in each side, 1 in back
Above Item Numbers denote raw castings. For Oven-Baked Powder Coated finishes,
add one of the following suffixes: P=Gray, BR=Bronze, W=White, BL=Black, G=Green

2 Gang Deep Box Accessories

Item
No.
Description
0
B-101
10-32 x 3/8" Hex Head Green Ground Screw
0
B-102
08-32 x 5/16" Slotted Flat Head Lug Screw

B-103
B-Box Mounting Lug

0

CP2
1/2" Closure Plug
0
CP3
3/4" Closure Plug
0
CP4
1" Closure Plug

0
2CP2G
2 CP2, 1 B-101 Ground Screw*
0
2CP2GLS
2 CP2, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
2CP3G
2 CP3, 1 B-101 Ground Screw*
0
2CP3GLS
2 CP3, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
2CP4G
2 CP4, 1 B-101 Ground Screw*
0

2CP4GLS
2 CP4, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
3CP2GLS
3 CP2, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
3CP3GLS
3 CP3, 1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0
4CP2G
4 CP2, 1 B-101 Ground Screw*
0
4CP3G
4 CP3, 1 B-101 Ground Screw*
0
B-105
1 B-101 Ground Screw, 2 B-103 Lugs, 2 B-102 Lug Screws*
0* Packaged in Plastic Bag


Weatherproof Diecast Zinc
2 Gang Covers

Click here for accessories such as
Screws and Gaskets.

Item No.
Hole Configuration
0

C1.4DR2
1.4" Single hole Receptacle and Duplex Receptacle
0
C1.4GFI2
1.4" Single hole Receptacle and GFI/Decorator
0
C1DR2
1 Duplex Receptacle (Oversize cover)
0
C21.42
2 1.4" Single hole Receptacle
0
C2DR2
2 Duplex Receptacle
0
C2GFI2
2 GFI/Decorator
0
C2TS2
2 Toggle Switch
0
CGFIDR2
GFI/Decorator and Duplex Receptacle
0
CTS1.42
Toggle Switch and 1.4" Single hole Receptacle
0
CTSDR2
Toggle Switch and Duplex Receptacle
0
CTSGFI2
Toggle Switch and GFI/Decorator
Above Item Numbers denote raw castings. For Oven-Baked Powder Coated finishes,
add one of the following suffixes: P=Gray, BR=Bronze, W=White, BL=Black, G=Green

2 Gang Covers Accessories

Item No.
Description
0

2G-101
2 Gang Cover Gasket
0
2G-102
2 Gang Lid Gasket
0
DC1-OS-PG
Duplex Cover Gasket (Oversize)

0
S-102
6-32 x 1/2" Slotted Oval Head Screw
